Автоматический станок для резки по линиям биговки с использованием высекальных форм
ABM-A800B
ОборудованиеОписание
Cutting Die Creasing Auto Rule Cutting Machine
You can rest assured to buy customized Cutting Die Creasing Auto Rule Cutting Machine from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

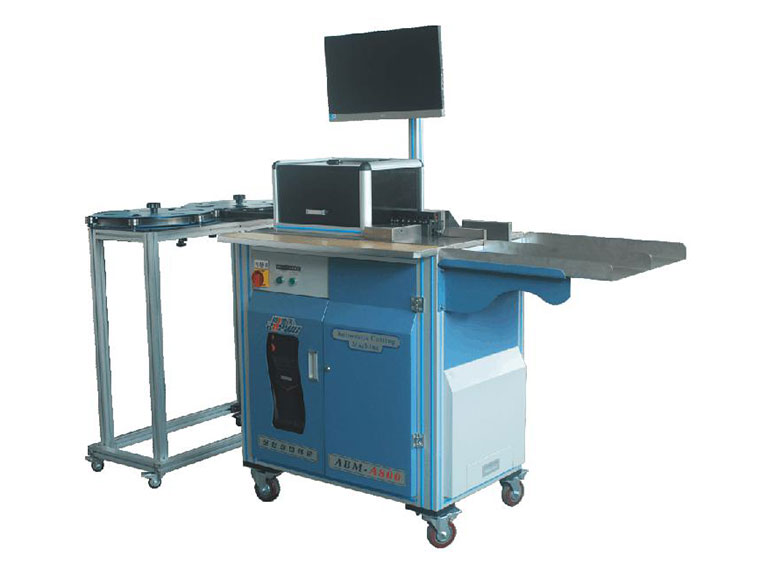

Picture of (ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine for reference:
1.Product Features:

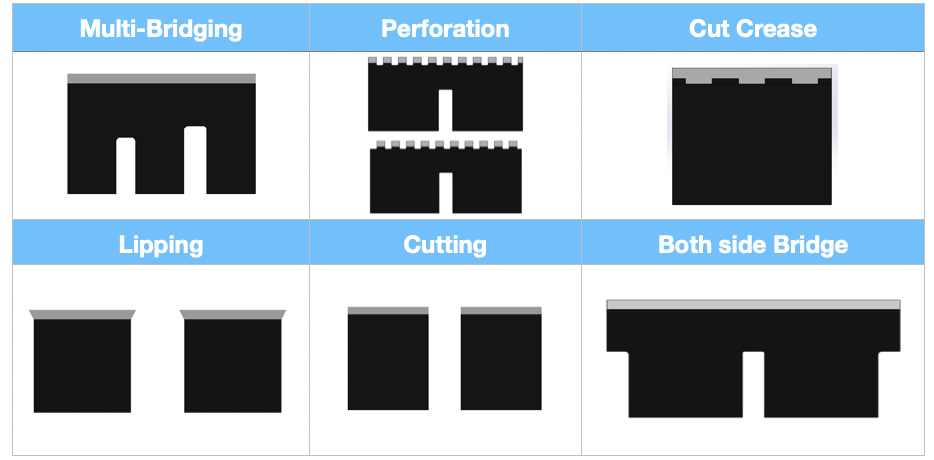

1.Multi-Functions：(ABM-A800B)Cutting Die Creasing Auto Rule Cutting Machine included Bridge,Perforation,Cut Crease,Lipping,Cutting,Both side Bridge.
2.This Cutting Die Creasing Auto Rule Cutting Machine supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.
3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.

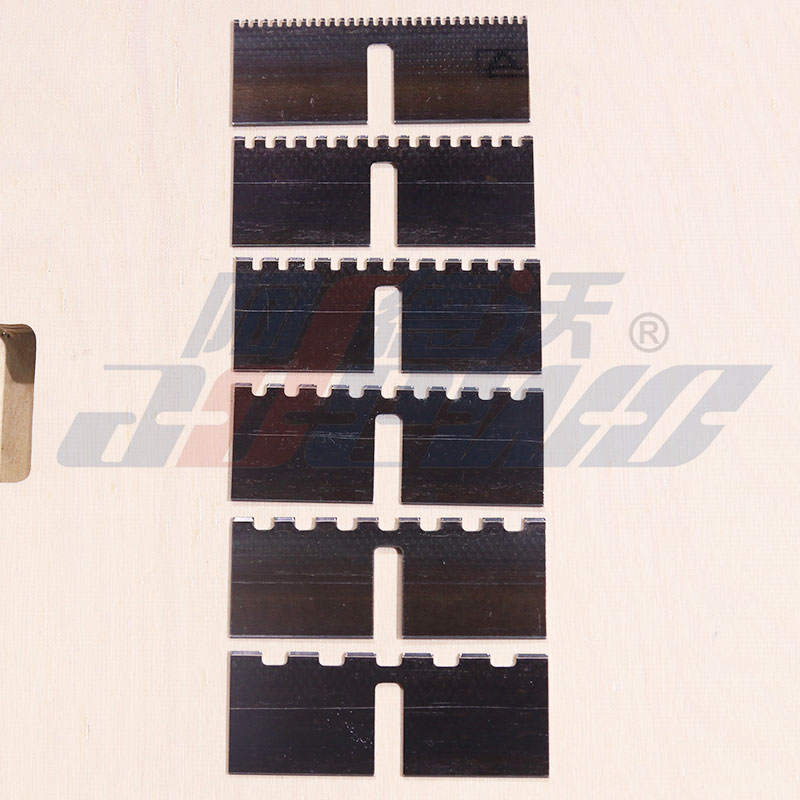

4.The different size of Bridge,Perforation,Cut Crease can be customized to meet different requirements of die boards.
5.Lipping Tool,Perforation tool,Cut Crease tool are customize based on the cutting rule bevel degree, to get high precision size.

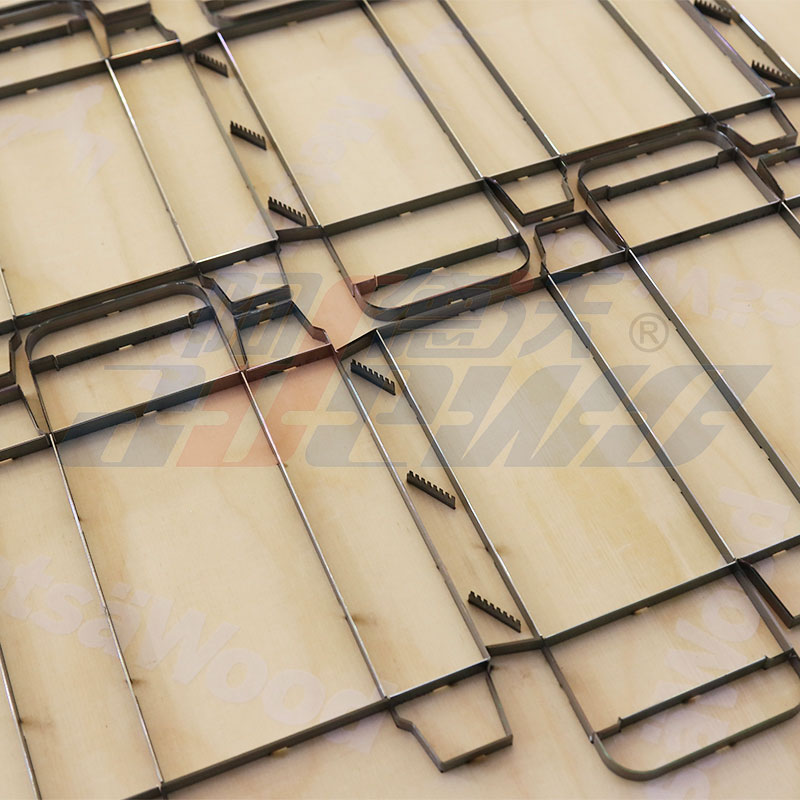

6.This Cutting Die Creasing Auto Rule Cutting Machine is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.
Характеристики
| Supported Rule thickness | 0.71,1.05,1.42mm (2pt,3pt,4pt) |
| Supported Rule height(mm) | 22-26mm |
| Basic Functions | Bridge,Perforation,Lipping,Cutting,Both side Bridge |
| Optional Functions | Cut Crease |
| Air supply | 0.4-0.8mpa |
| Power supply | 220V,2KW |
| Weight | 270KGS |
| Overall dimension | 2300x1050x1400(L×W×H) |
| H.S. Code | 8461500090 |
