Многофункциональная машина для биговки и резки с функцией засечек
ABM-X1D
ОборудованиеОписание
Multi Functions Creasing Cutting Machine with Nicking
As the professional manufacture, we would like to provide you high quality Multi Functions Creasing Cutting Machine with Nicking. And we will offer you the best after-sale service and timely delivery.Sincerely look forward to cooperating with you in the near future.

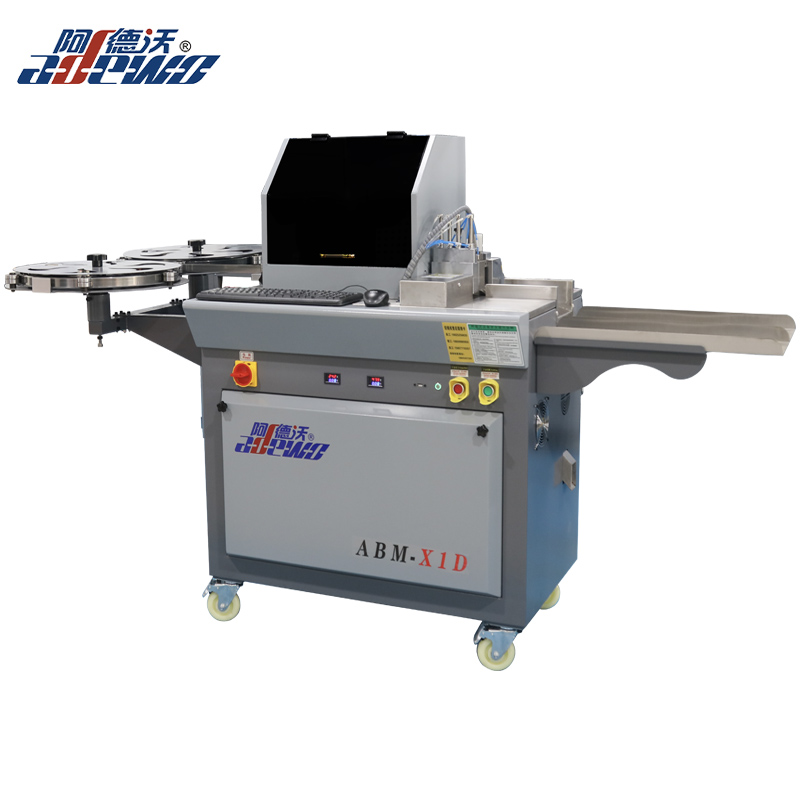

Picture of (ABM-X1D) Multi Functions Creasing Cutting Machine with Nicking for reference:
1.Product Features:

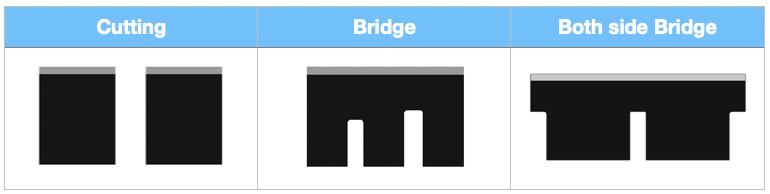

1.(ABM-X1D) Multi Functions Creasing Cutting Machine with Nicking included functions:Nicking,Bridge,Cutting,Lipping,Both side Bridge,Perforation,Cut Crease.
2.This Multi Functions Creasing Cutting Machine with Nicking supported 2pt,3pt,4pt cutting rule and creasing rule,easy to change different steel rules.
3.The length of creasing rule/cutting rule can be identify quickly by the smart software, finish auto bridge and auto cutting in few minutes.
4.This Stitched Cartons Die Multi Functions Creasing Cutting Machine with Nicking is widely used in die making of carton box, paper box, cardboard, paper bag,corrugated and etc.
Характеристики
| Supported rule thickness(mm) | 0.71,1.05,1.42mm（2pt,3pt,4pt） |
| Supported rule height(mm) | 22-26mm |
| Basic Functions | Nicking,Bridge,Cutting,Lipping,Both side Bridge |
| Optional Functions | Perforation,Cut Crease |
| Air Supply | 0.4-0.8mpa |
| Power Supply | AC220V,50-60Hz |
| Total Power | 2KW |
| Weight | 260KGS |
| Packing Size | 2250x1050x1100mm(L×W×H) |
| H.S. Code | 84615000.90 |
